Here is a Video showing you how it is processed.





IR remote

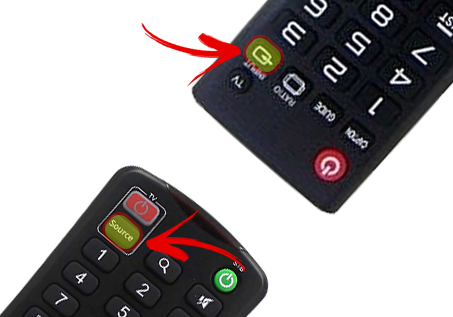

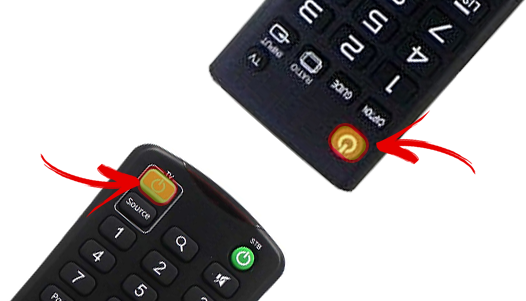

How to program TV or Source keys

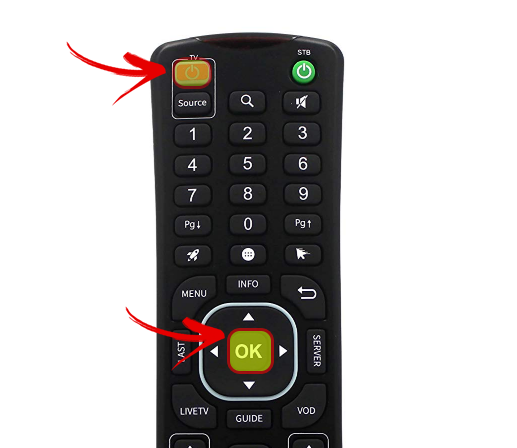

1.Press and hold TV+OK for 3s till LED turn solid on and RCU enters learning mode

2.Press the key to be programmed on this RCU. LED begins blinking

3.Aim the TV RCU towards the front of this RCU(distance less than 3cm)Press the button on the TV RCU,if the STB RCU is programmed
correctly,the LED will flash 3 times then turn solid on

4.Repeat steps 2-3 for other keys

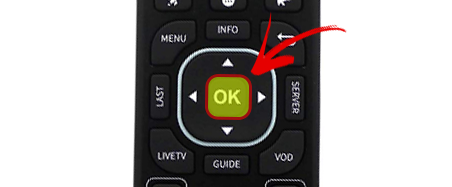

5.Exit learning mode by long pressing OK button for 3s,LED flash twice then turn off

Edited October 27, 20205 yr by BigBision
added the video

Thanks for the fast reply with a solution. That is how I have been trying it but it never did take. However, success this time. The new remote is working my volume and power to the TV.

Thanks!

fast reply?
I'd hate to see a slow reply considering it was posted 2 years ago...lol

just noticed the OP calls it an IR remote which is not true

Guess OP means programming/learning some of the IR portion of the remote.

20 minutes ago, Emporium said:

Guess OP means programming/learning some of the IR portion of the remote.

then they put IR Remote in wrong location of post

figured it out

tv power and source buttons are IR

but it's actually a wireless remote
